Description

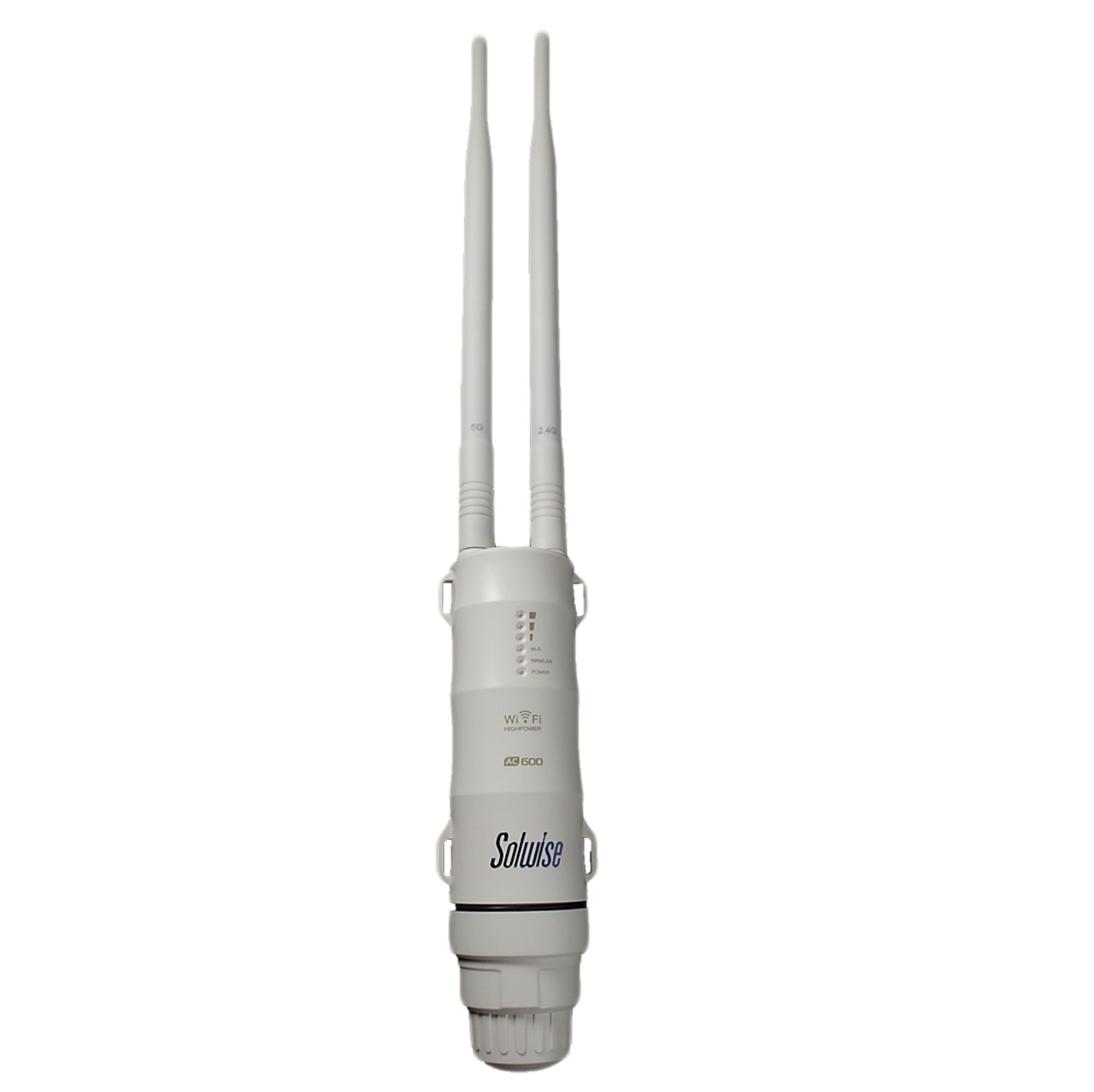

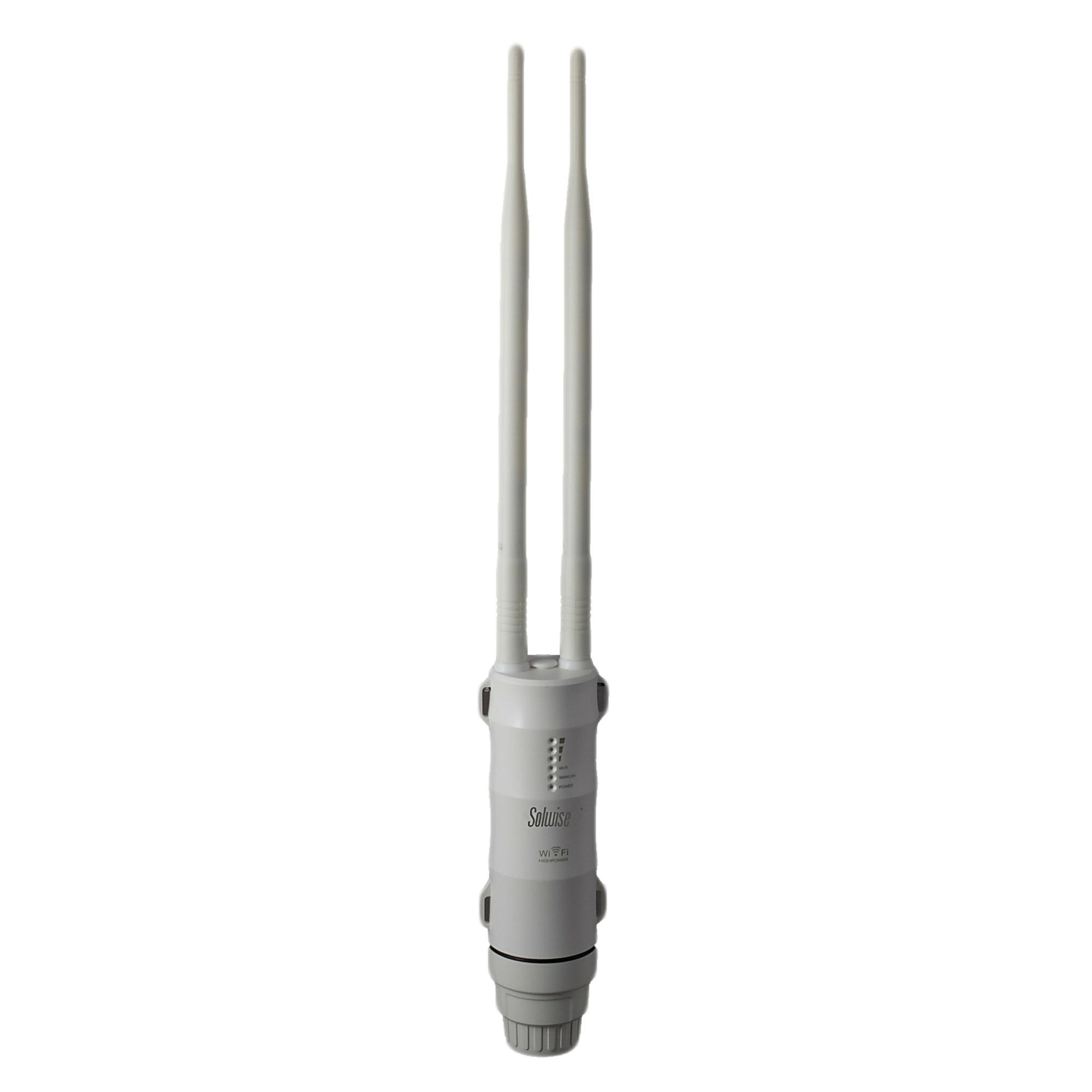

Access, Boost, Repeat, Extend your Wi-Fi services with Solwise PATRIOT-DB
Boost outdoor Wi-Fi signal by up to 100-150 metres.
The Patriot-DB can be used a General Purpose Outdoor Access Point and includes a variety of additional modes that allow it to function as a high performance Wi-Fi client device.
As a result, the Patriot-DB can broadcast Wi-Fi in areas where it needs to strengthened- gardens, festival and camp sites. It can even be used as a client to pick up public wireless services in places like caravan park and marinas.
Wi-fi Access Point Use
The Patriot-DB Can boost outdoor Wi-Fi signal up to 100-150 meters depending on openness of the outdoor area. The device is omni-directional meaning it can broadcast Wi-Fi across a wide area 360°around it, so is ideal for use as a public access Wi-Fi hotspot.
Dual Band = Relay Wi-Fi = Boost Connectivity and Speed
The Patriot-DB is able to relay Wi-Fi by simultaneously receiving a signal on its 2.4GHz band and broadcasting on its 5GHz band or vice versa.
In turn this Boosts the connectivity and speed on your hand-held devices from other weak Wi-Fi networks.
(Caution is advised when using the repeater function in public spaces due to interference and bandwidth restriction issues.)
Placement
The Patriot -DB can be mounted to exterior walls of a lodge, vehicle, vessel etc., to establish a connection to a Wi-Fi network and when connected to a suitable indoor access point/router will provide a private service within your home, boat, van, building.
Link and Connect
If you purchase a pair of Patriot-DB they could be used to link to each other and connect 2 buildings together within the range of 100-150 metres.
Features
-
IEEE 802.11 ac/a/b/g/n standards
-
Wi-Fi = 2.4Ghz -150Mbps and 5Ghz – 433Mbps
-

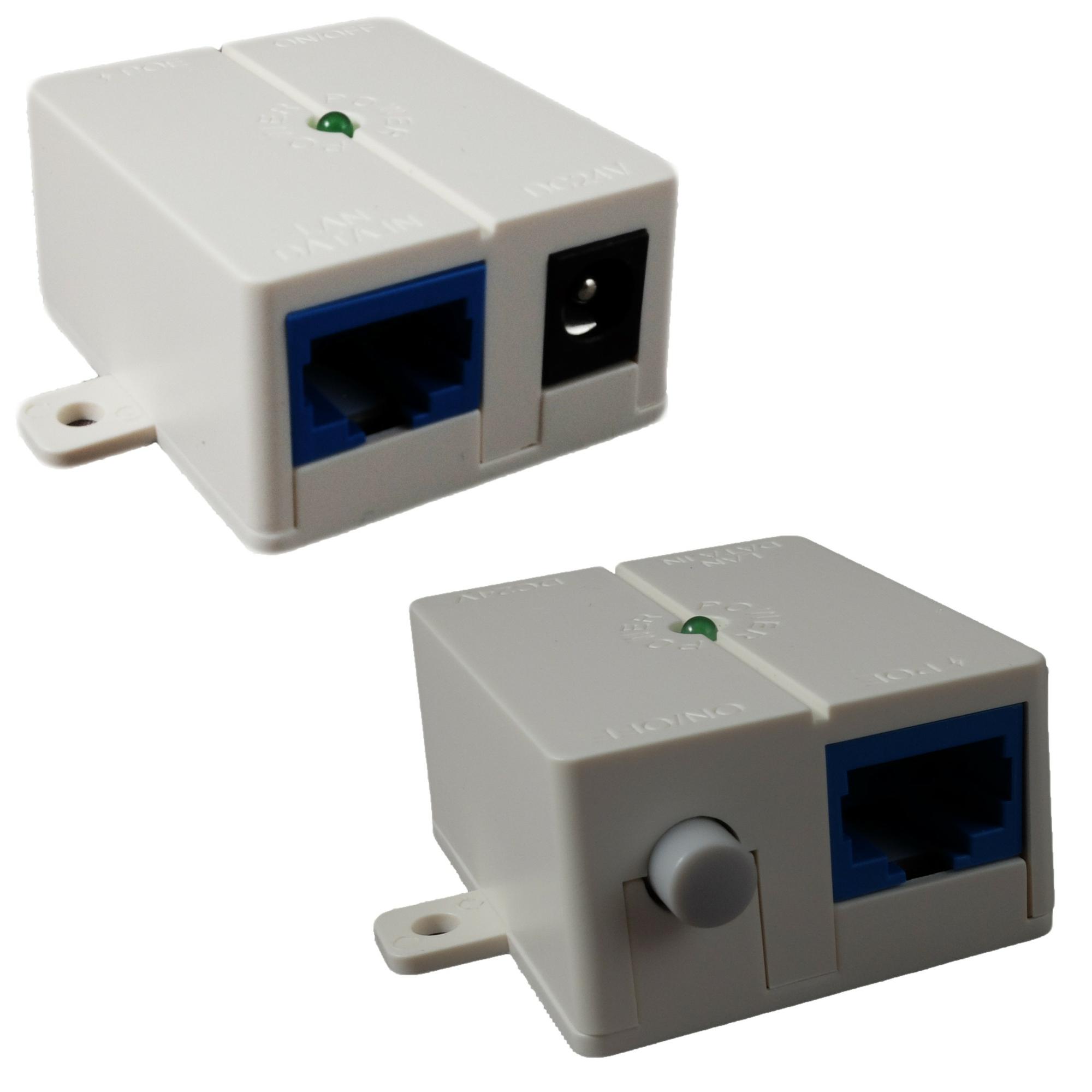

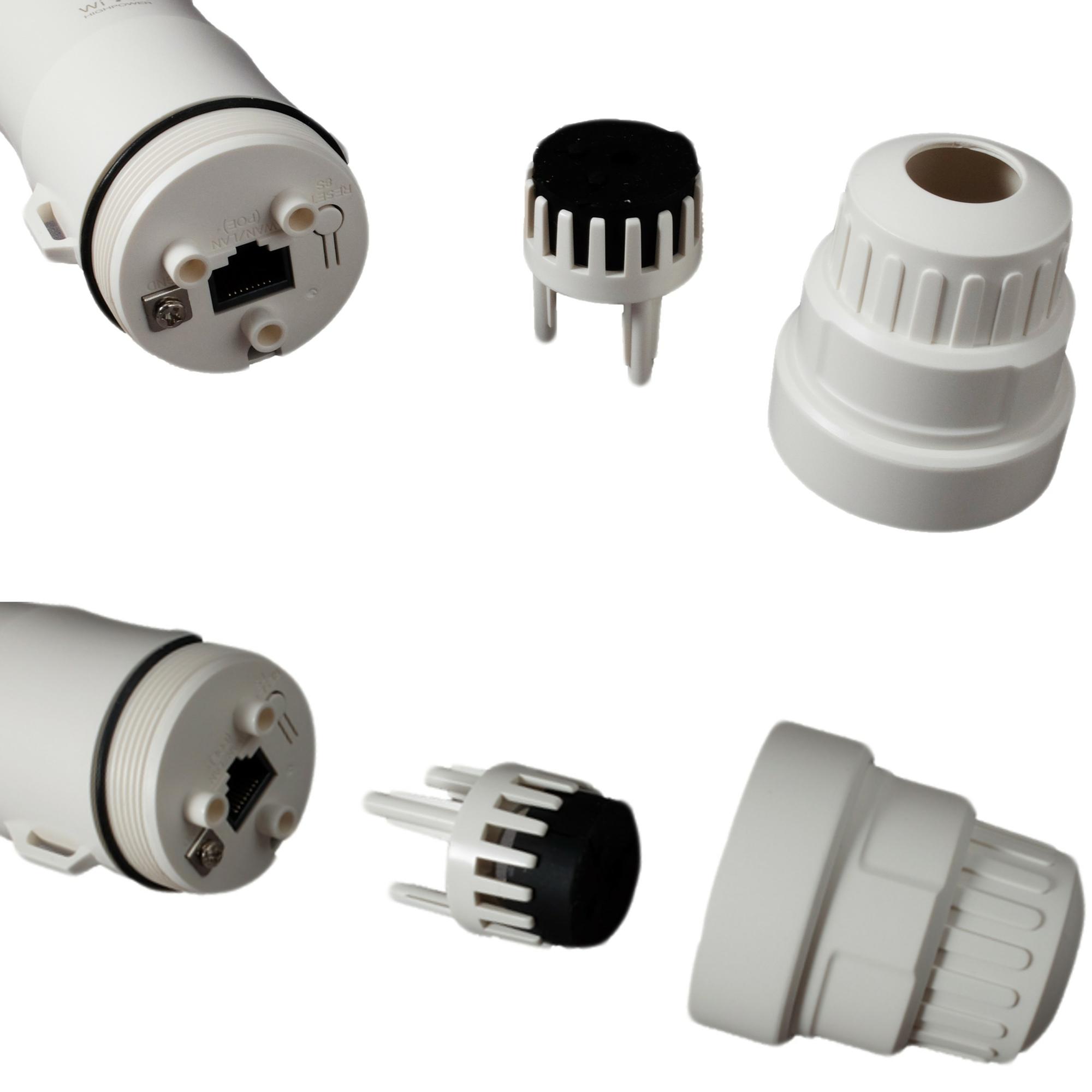

Weatherproof RJ45 connector with integrated passive Power over Ethernet (PoE)
-
Passive PoE support for flexible deployment
-
Provides high performance over long-range links
-
Up to 1000mW of transmit power and enhanced receive sensitivity
-
Robust weatherproof case – IP Rating 65
-
Operations modes; Access Point, Router, Wi-Fi Repeater
-
High security with 802.11X, WAP, and WPA2
-

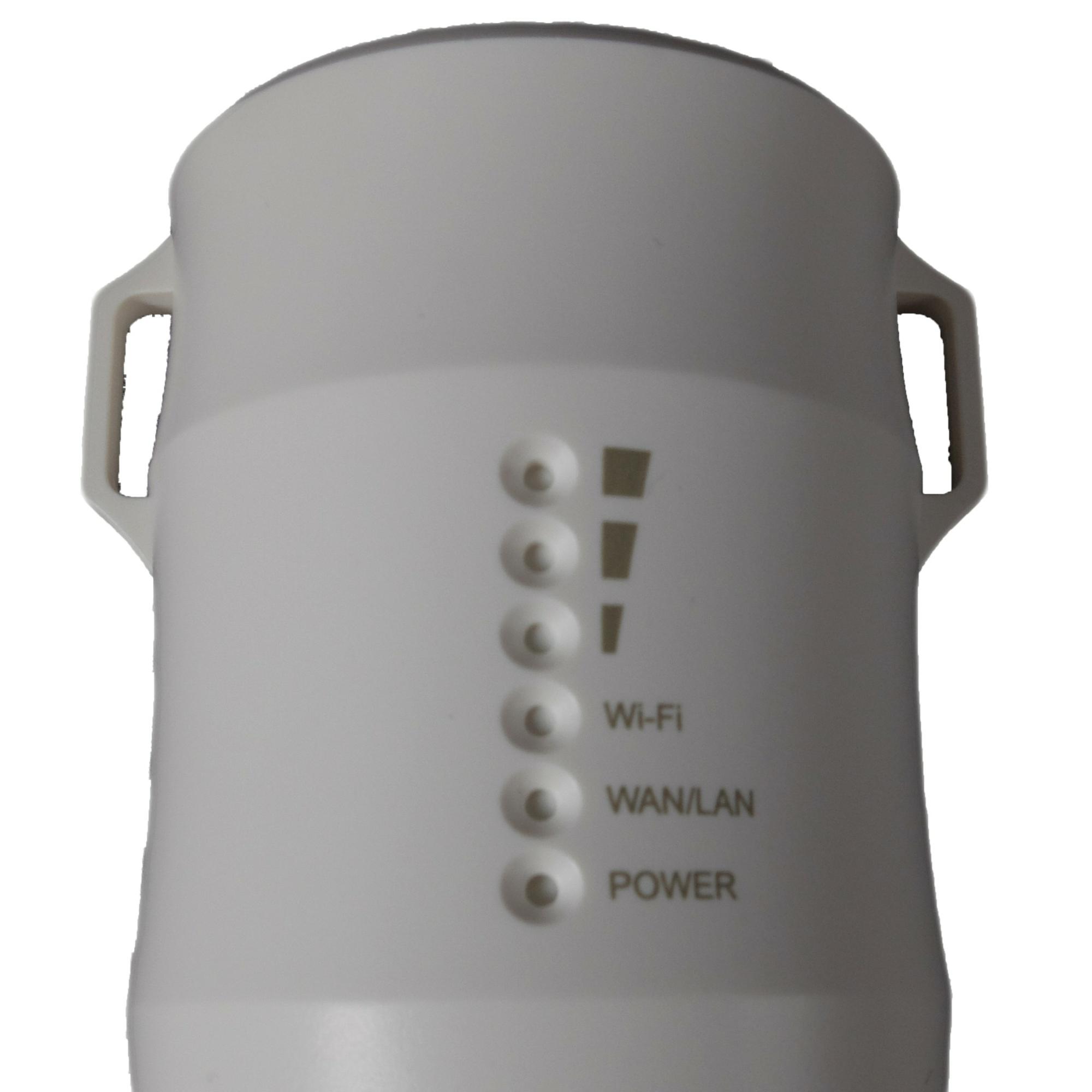

3 LEDs display signal strength
-
Built in lightning protection (15kV ESD)
